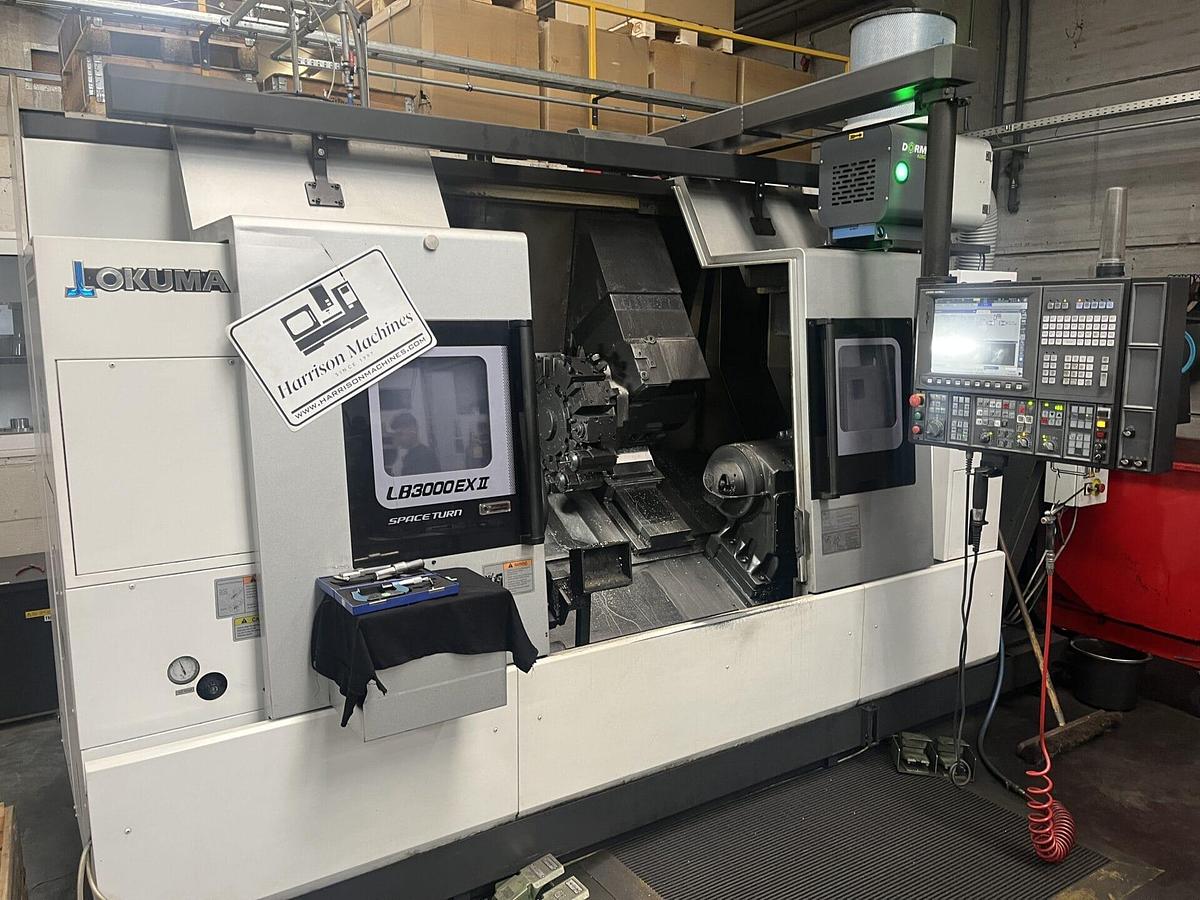

2020 OKUMA LB3000 EXII CNC turning Centre with Y-axis, C-axis, sub spindle and live tooling
2020 OKUMA LB3000 EXII CNC turning Centre with Y-axis, C-axis, sub spindle and live tooling
Location:Hasselt, Belgium
or
Call +32 11 755 283
Description
OKUMA CNC turning Centre with Y-axis, C-axis, sub spindle and live tooling
Distance between centres::1020mm
With automatic doors (original from the factory)
With parts catcher
Option extended tool data management
Smoke extraction
Media files can be downloaded via the following link:
Specifications
| Model | LB3000 EXII |
| Year | 2020 |
| Condition | Used |
| Control | OSP-P300LA Suite |
| Y-axis | +70mm / -50mm |
| W-axis | 800mm |
| Turning diameter over bed | 580mm |
| Turning diameter over cross slide | 470mm |
| Max. workpiece diameter | 410mm |
| Spindle bore | 91mm |
| Main spindle speed | 4200rpm |
| Sub-spindle speed | 6000rpm |
| Toolchanger | 12atc |
| Machine weight approx. | 6850kg |
| Please Note | The above information has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. Specific tooling must be requested before purchasing, since machines are in production at time of photos and availability can not be guaranteed. We advise you to check any vital details! |
