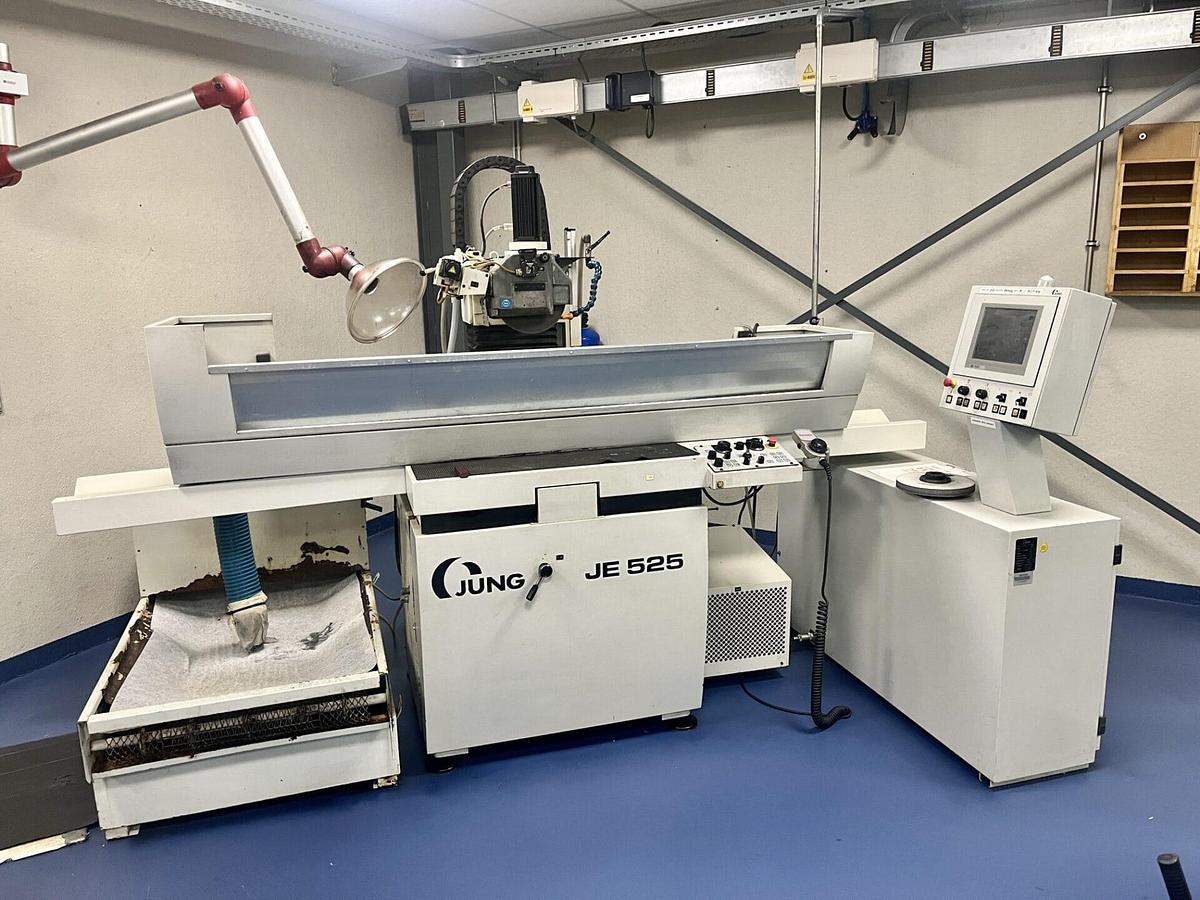

2003 JUNG JE 525 Surface Grinding Machine
2003 JUNG JE 525 Surface Grinding Machine
Location:Hasselt, Belgium
or
Call +32 11 755 283
Description
JUNG Surface Grinding Machine
Grinding wheel:
Videos available
Specifications
| Model | JE 525 |
| Year | 2003 |
| Condition | Used |
| Magnetic table | 600x200mm |
| Grindable workpiece surface including disc width 25mm | 600x250mm |
| Distance between the top of the table and the upper limit switch (Y) with a disc diameter of 250mm | 370mm |
| Permissible load including magnetic plate | 100kg |
| Height above the floor | 1170mm |
| Spindle speed | 800-4200rpm |
| Diameter | 250mm |
| Widht | 25/30mm |
| Machine size for transport-LWH | 1500x2270x1860mm |
| Machine weight | 2200kg |
| Please Note | The above information has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. Specific tooling must be requested before purchasing, since machines are in production at time of photos and availability can not be guaranteed. We advise you to check any vital details! |
