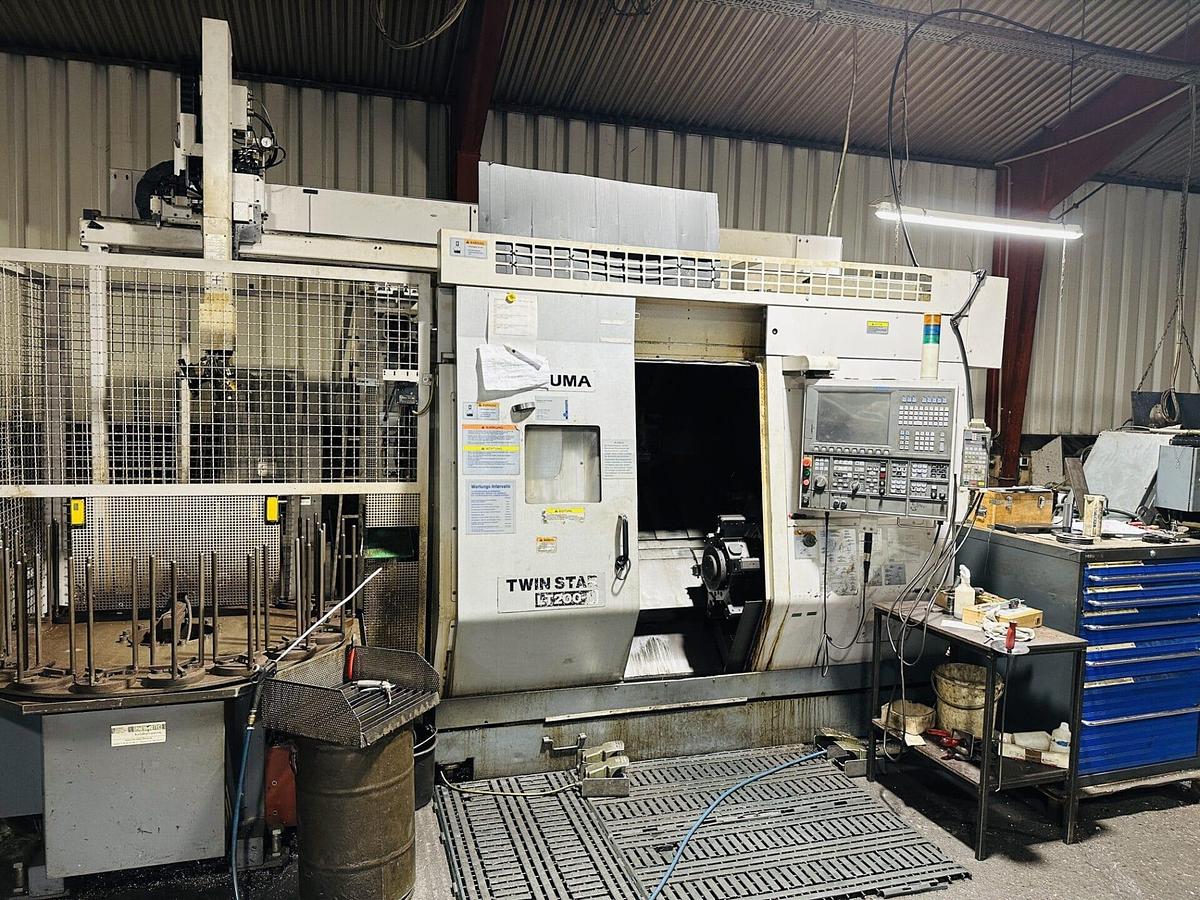

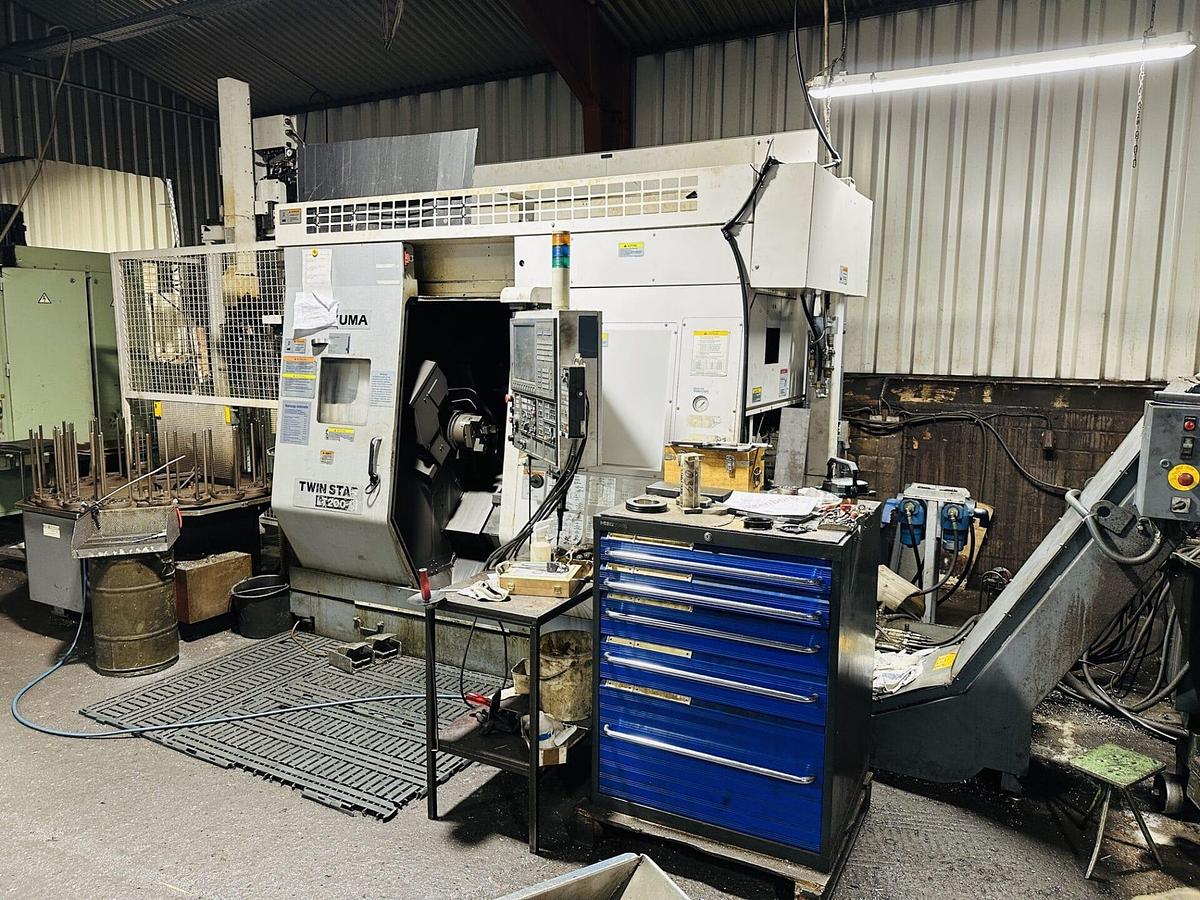

2007 OKUMA LT200M Twin Turret Twin Spindle CNC Turning Centre with C-axis
2007 OKUMA LT200M Twin Turret Twin Spindle CNC Turning Centre with C-axis
Location:Hasselt, Belgium
or
Call +32 11 755 283
Description
OKUMA Twin Turret Twin Spindle CNC Turning Centre with C-axis
With robot loader
Specifications
| Model | LT200M |
| Year | 2007 |
| Condition | Used |

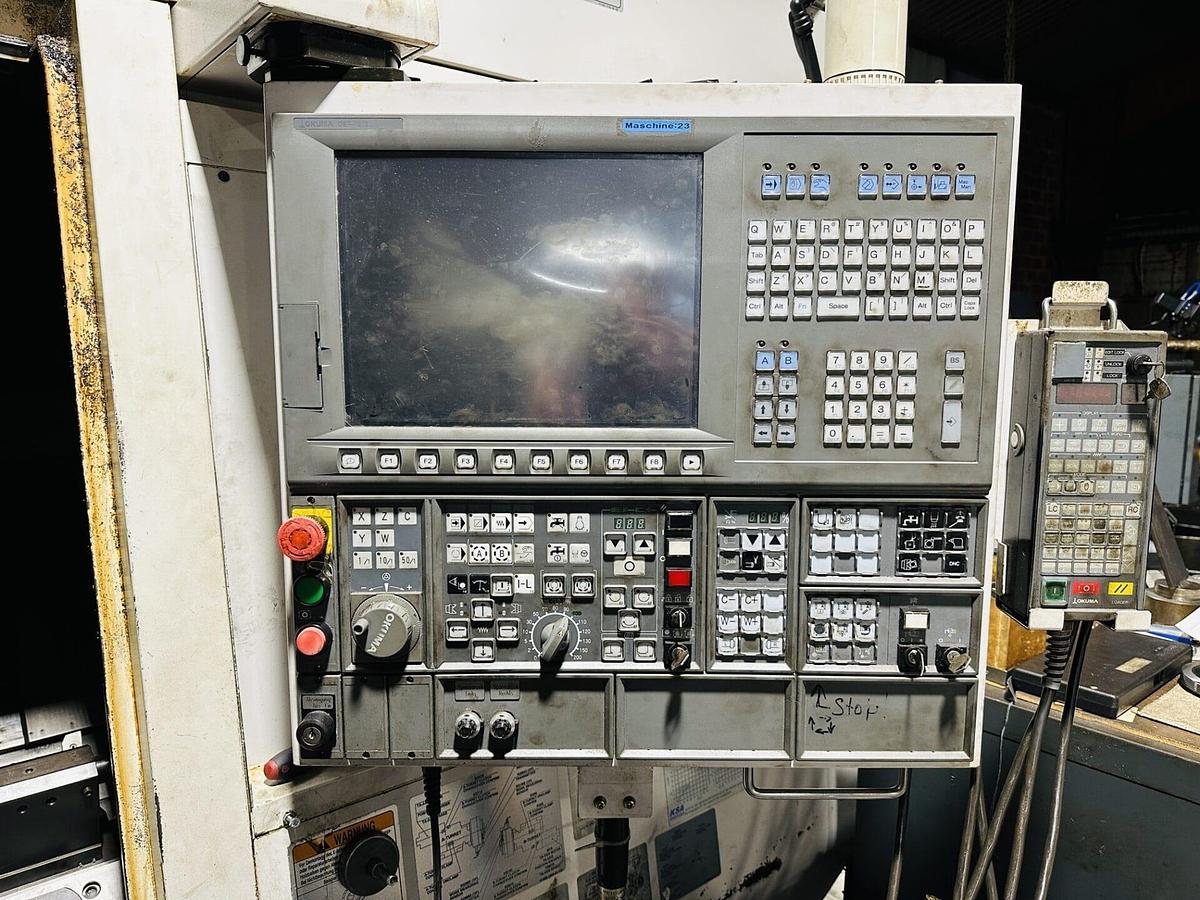

| Control | OSP-P200L |
| Max. Turning Diameter | 210 mm |
| Max. Machining Length | 540 mm |
| Bore Diameter | 62 mm |
| Bar Work Capacity | 56 mm |
| Spindle speed (Main & Sub) | 4500 RPM |
| C-Axis Indexing (Main & Sub) | 0.001 Degree |
| Cross Slide Travel XA-Axis | 192 mm |
| Cross Slide Travel AB-Axis | 192 mm |
| Longitudinal Travel ZA-Axis | 700 mm |
| Longitudinal Travel AB-Axis | 700 mm |
| W-Axis (Sub Spindle) | 730 mm |
| Toolchanger | 2x12atc |
| Spindle Drive Motor (Main & Sub) | 12 kW |
| Rotary Tool Spindle Speed | 6000 RPM |
| Please Note | The above information has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. Specific tooling must be requested before purchasing, since machines are in production at time of photos and availability can not be guaranteed. We advise you to check any vital details! |
