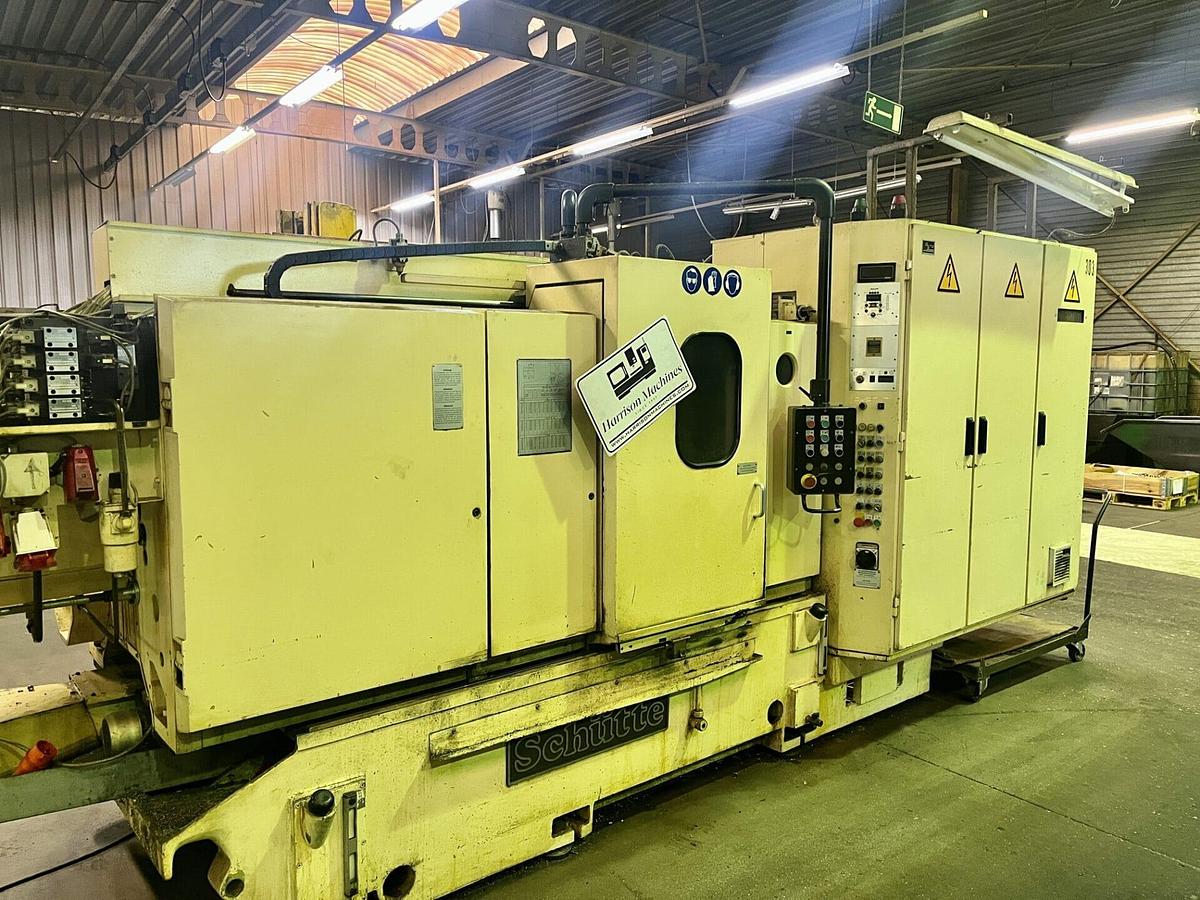

1992 SCHÜTTE SF 26 DNT multi-spindle automatic lathe
1992 SCHÜTTE SF 26 DNT multi-spindle automatic lathe
Location:Hasselt, Belgium
or
Call +32 11 755 283
Description
SCHÜTTE multi-spindle automatic lathe
Largest rod diameter: normal/round:26mm, square:19mm, hexagon:22mm, octagonal:24mm
Cross slide travel (total travel/working travel):
Spindle speeds:
Specifications
| Model | SF 26 DNT |
| Year | 1992 |
| Condition | Used |
| Spindle diameter | 270mm |
| Diameter of the center hole | 70mm |
| Longitudinal slide travel, normal (total travel/working travel) | 80/63mm |
| Special (total travel/working travel) | 125/98mm |
| Top slide | 40/25mm |
| Middle slide | 40/25mm |
| Bottom slide | 50/31mm |
| Number of spindle speeds | 49 |
| Range I | 530-3750rpm |
| Range II | 236-1700rpm |
| Machine size-LWH | 3970x1595mm |
| Machine weight | 6500kg |
