2008 BOEHRINGER NG 200-4

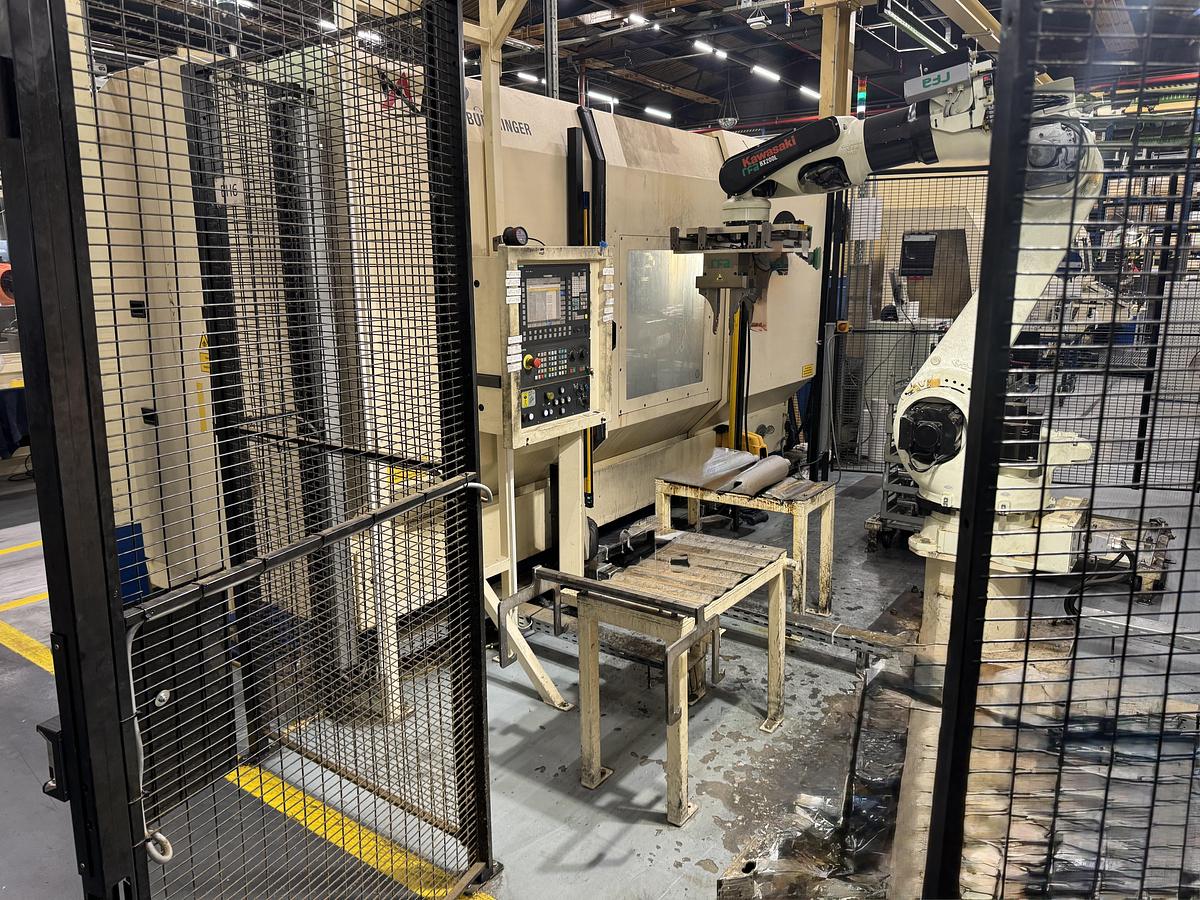

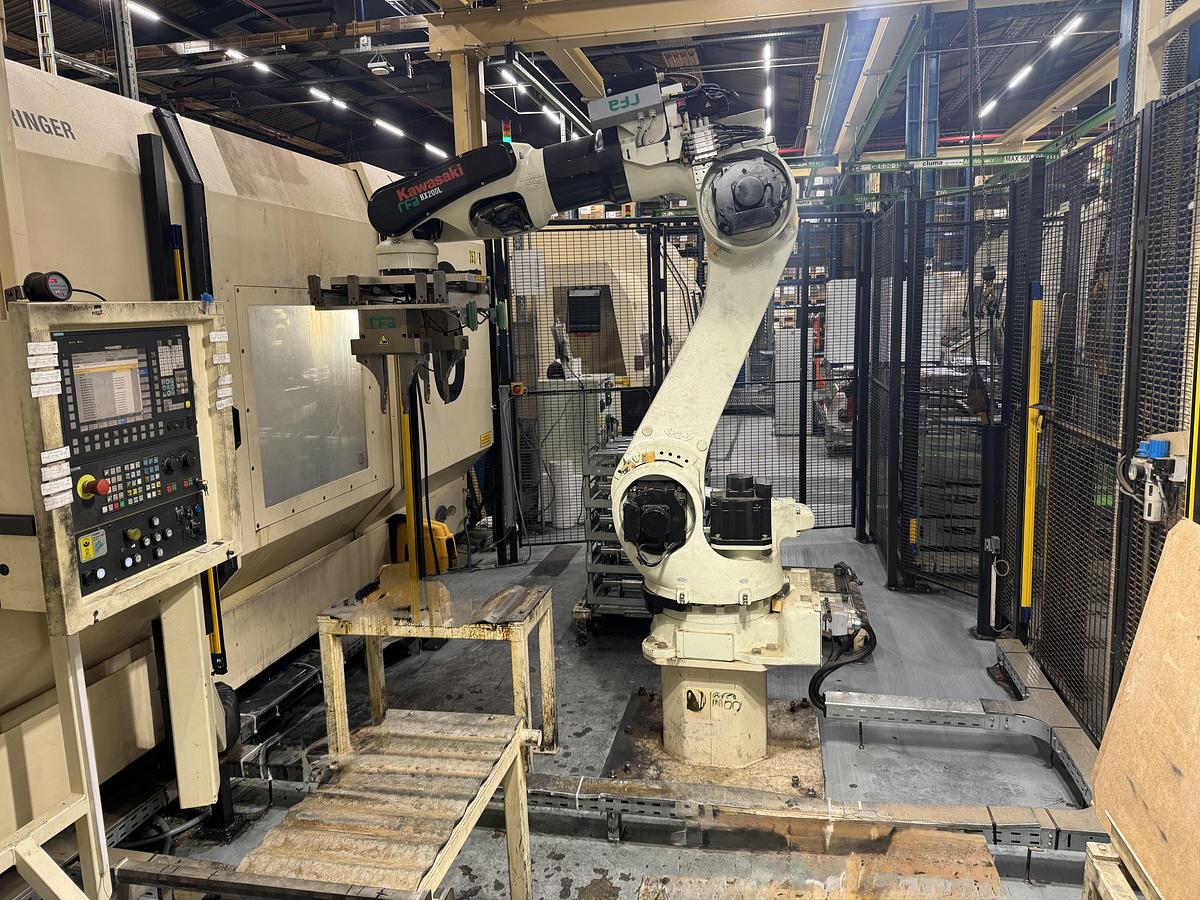

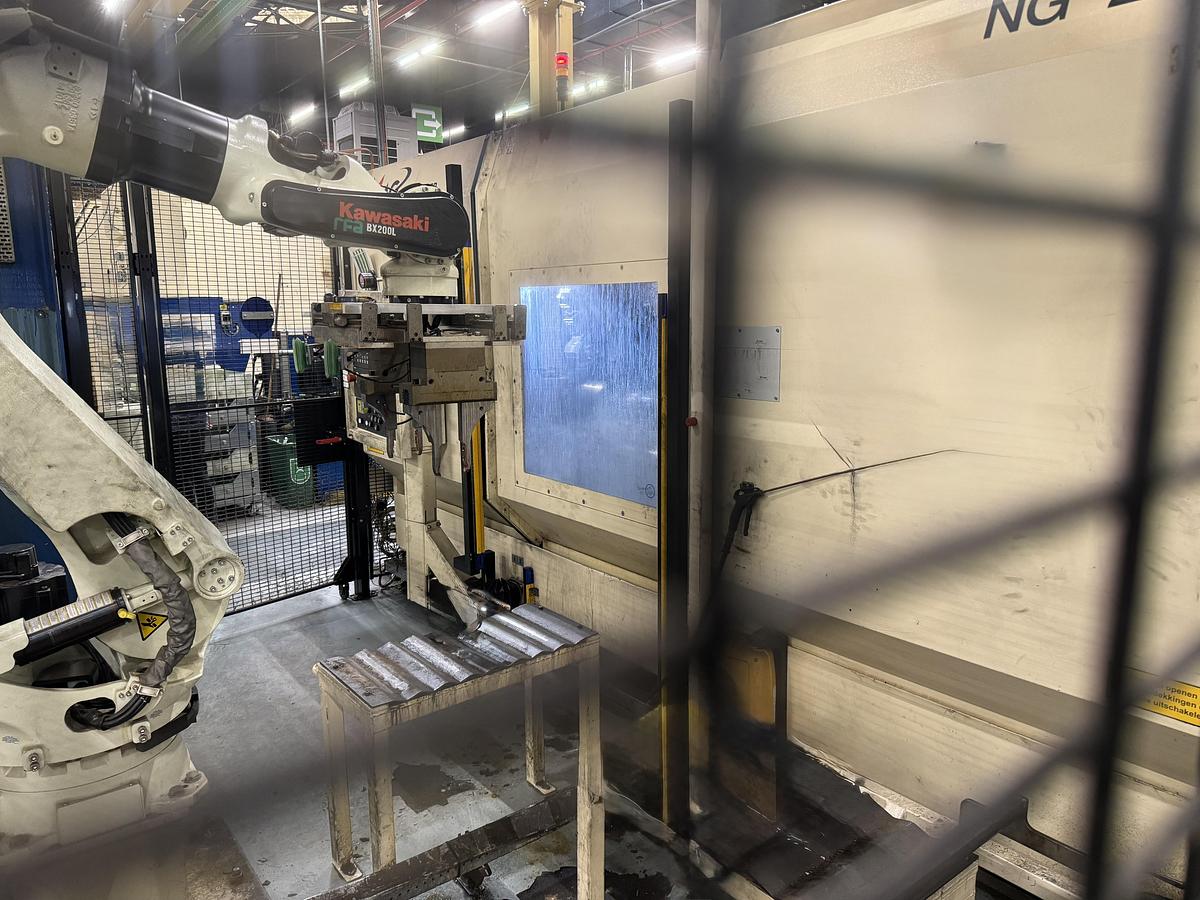

BOEHRINGER Twin Spindle Twin Turret CNC Turning Centre with C-axis and Y-axis Type:NG 200-4 Year:2008 Control: SIEMENS Sinumerik 840D 4 linear axis: XZ travels:220x950mm Upper turret:X1Z1 Lower turret:X2Z2 C-axis on both spindles Y-axis on the lower turret for eccentric milling and drilling Turrets & Tools Two 12-station turrets (24 tool positions in total) -Approximately 4 driven positions on the upper turret -Approximately 6 driven positions on the lower turret Working Range & Performance Max. Spindle speed: 4500rpm Spindle bore:65mm Integrated chip conveyor Coolant system with filtration Machine size-LWH approx.: 6.12 m × 2.46 m × 2.62 m Weight approx.:12,000 kg Important note: The machine has a crack in the cast iron machine bed. The machine was still in operation with this damage. All other systems (spindles, turrets, drives, and electronics) are functioning correctly With KAWASAKI BX200L B 6-axis robot (can be sold separately) Please Note: The above information has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. Specific tooling must be requested before purchasing, since machines are in production at time of photos and availability can not be guaranteed. We advise you to check any vital details!
