2008 BOEHRINGER NG 200-4

BOEHRINGER Twin Spindle Twin Turret CNC Turning Centre with C-axis and Y-axis

Type:NG 200-4

Year:2008

Control: SIEMENS Sinumerik 840D

4 linear axis:

XZ travels:220x950mm

Upper turret:X1Z1

Lower turret:X2Z2

C-axis on both spindles

Y-axis on the lower turret for eccentric milling and drilling

Turrets & Tools

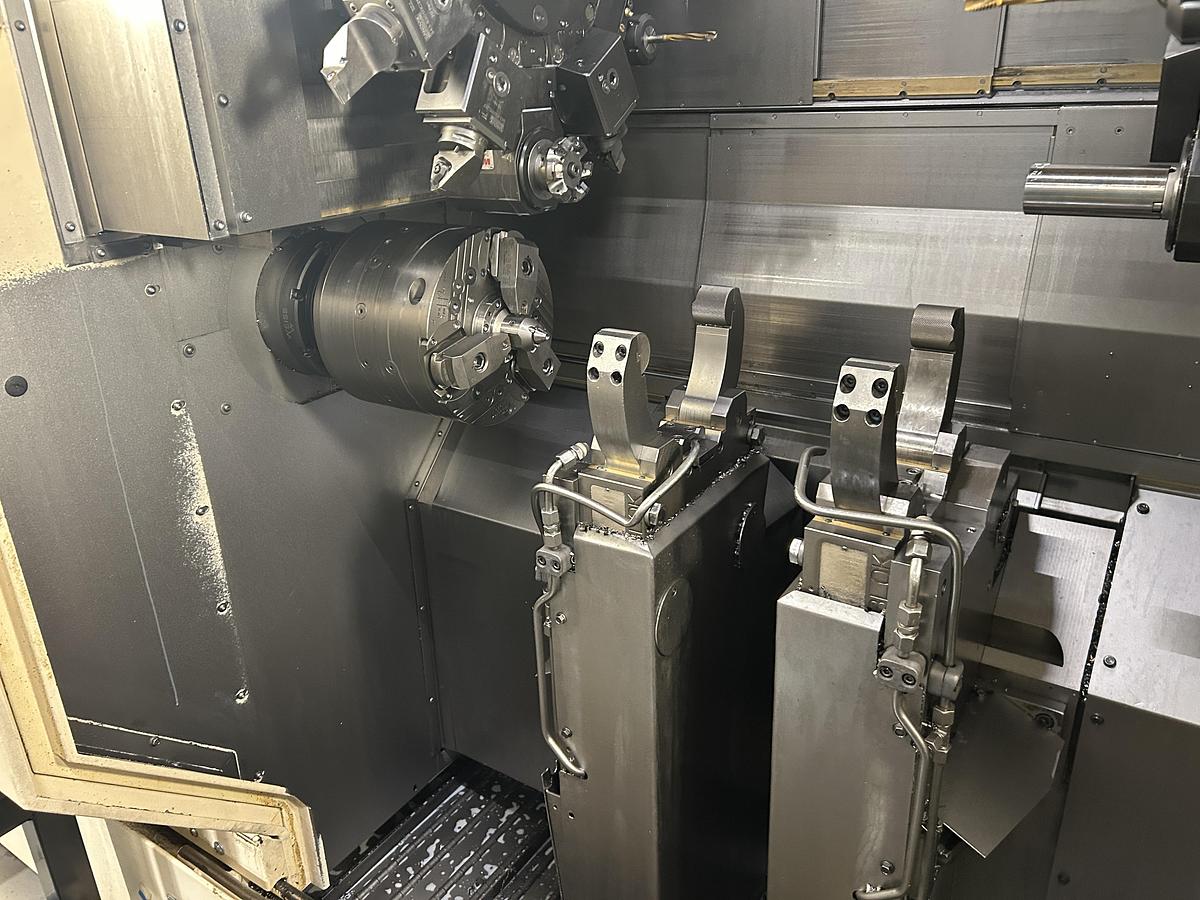

Two 12-station turrets (24 tool positions in total)

-Approximately 4 driven positions on the upper turret

-Approximately 6 driven positions on the lower turret

Working Range & Performance

Max. Spindle speed: 4500rpm

Spindle bore:65mm

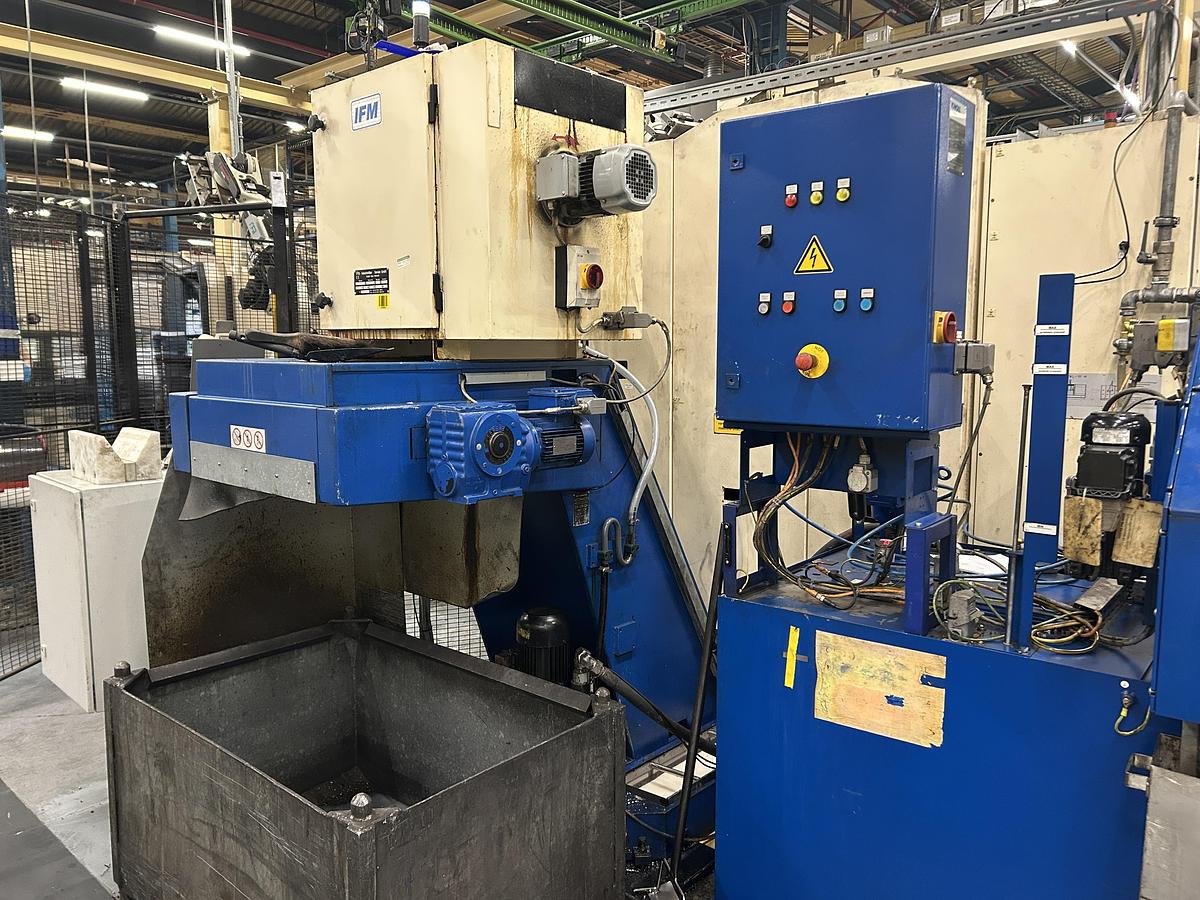

Integrated chip conveyor

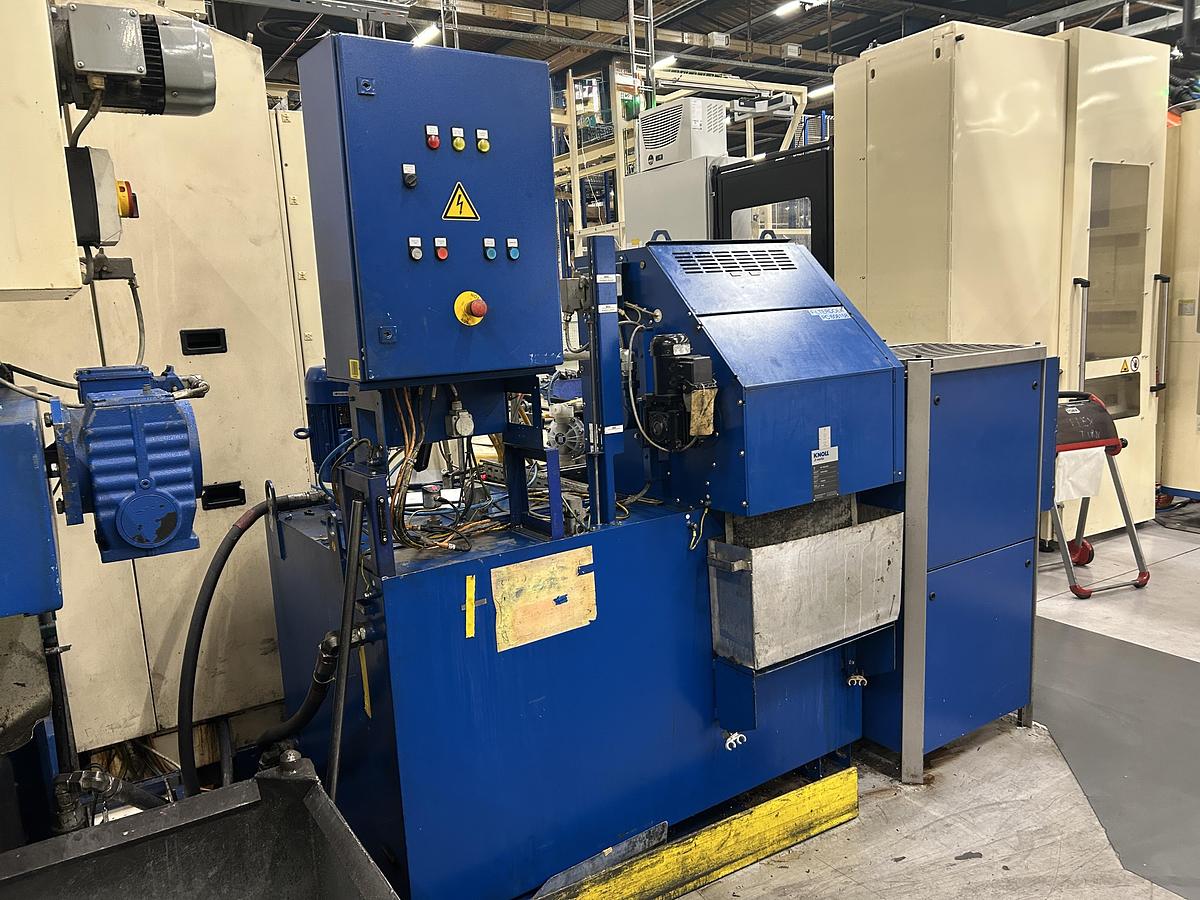

Coolant system with filtration

Machine size-LWH approx.: 6.12 m × 2.46 m × 2.62 m

Weight approx.:12,000 kg

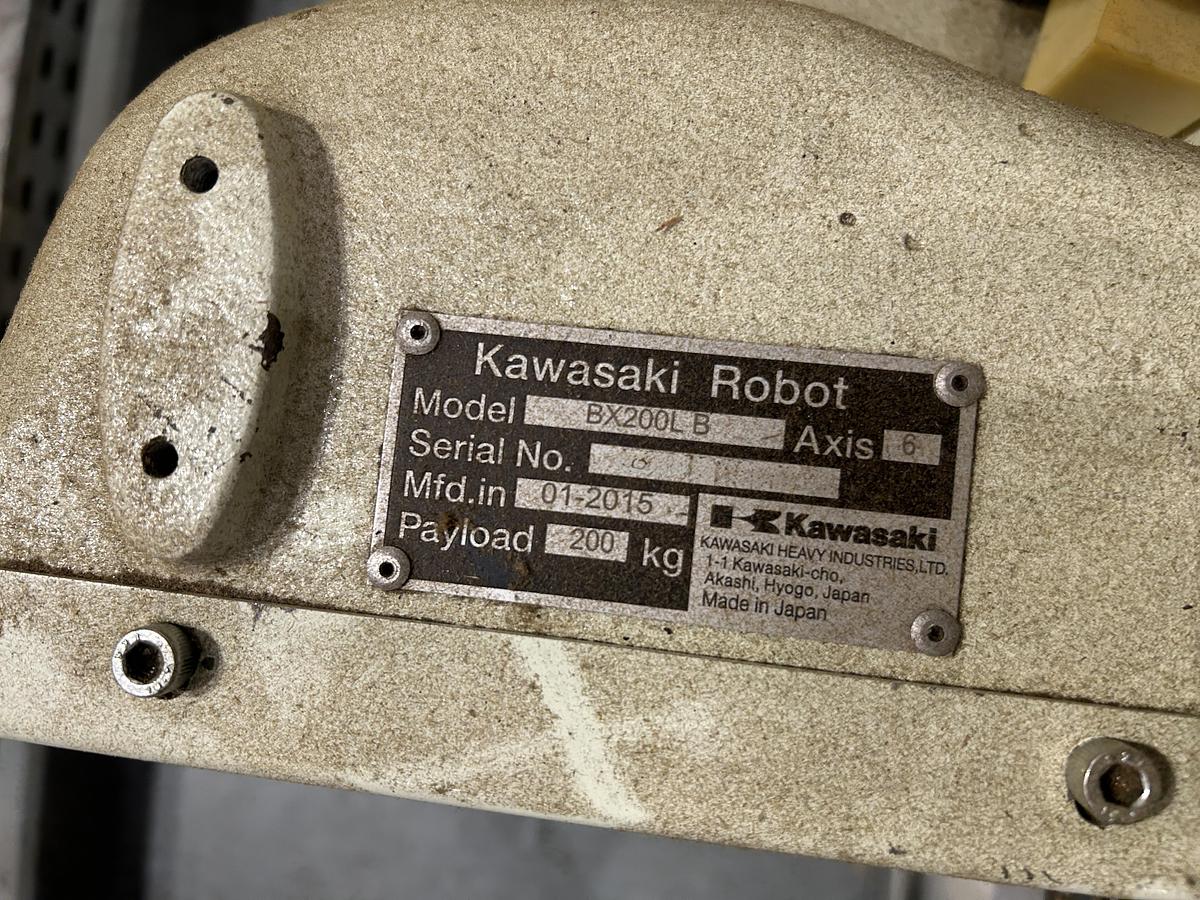

With KAWASAKI BX200L B 6-axis robot (can be sold separately)
