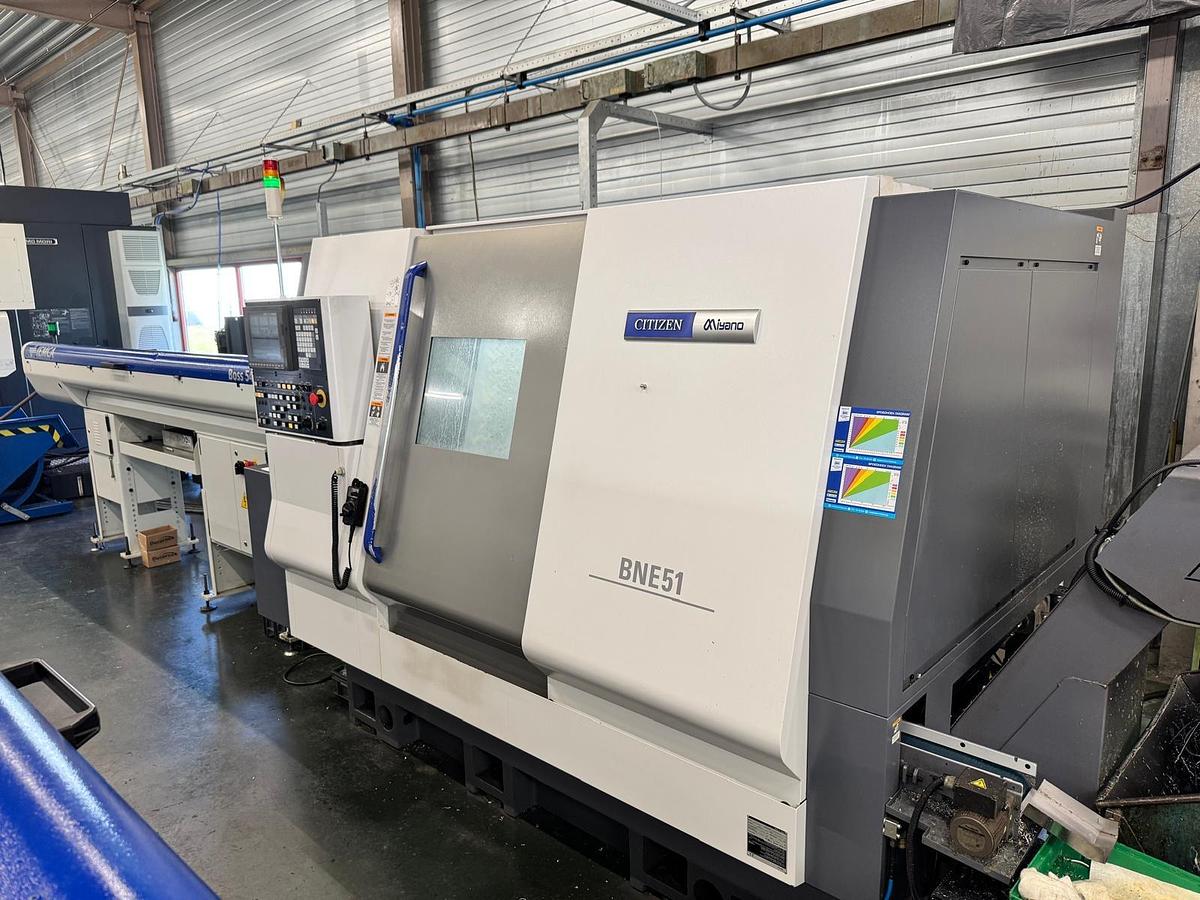

2018 MIYANO BNE-51MSY

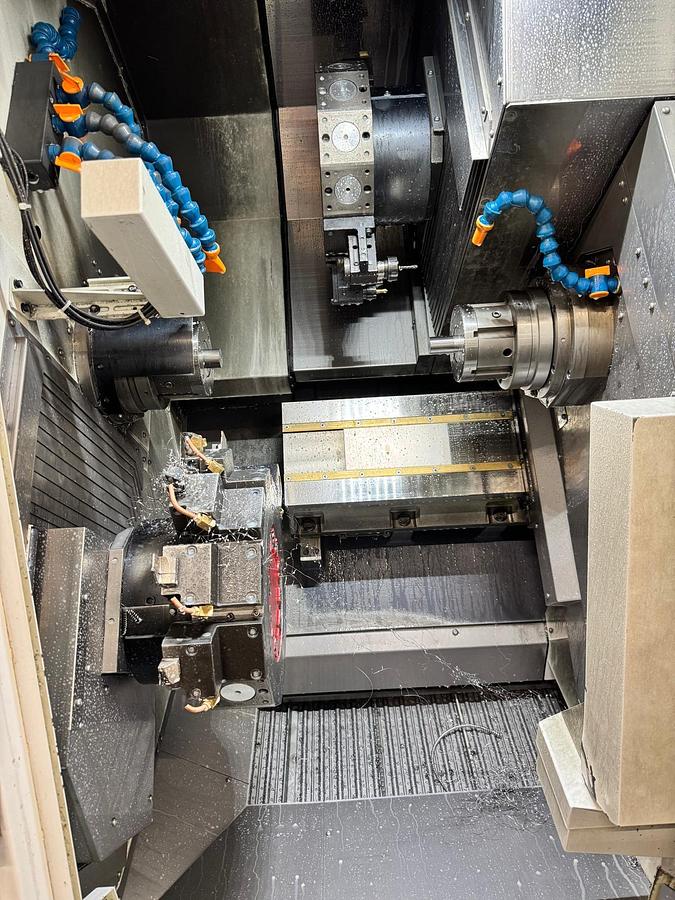

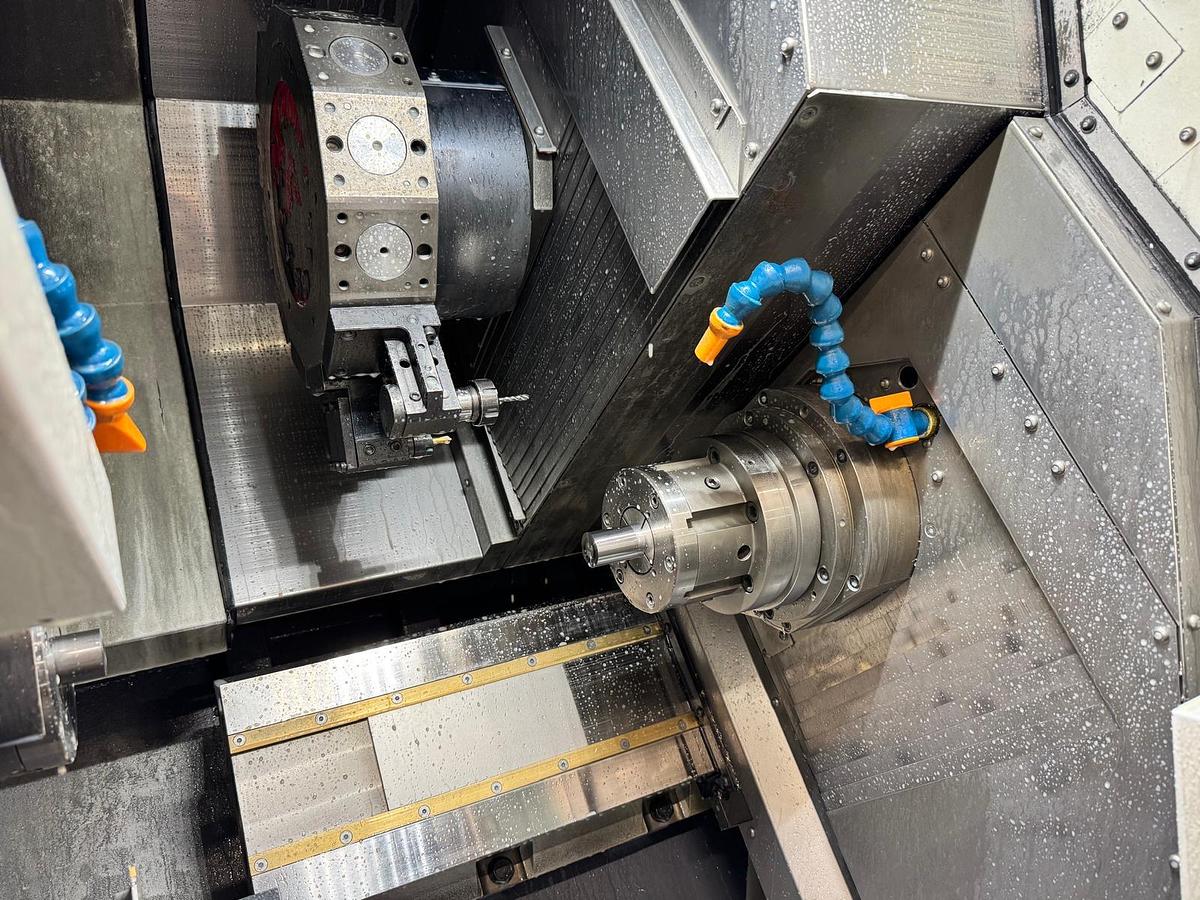

MIYANO CNC Turning Centre with Twin Spindle Twin Turret

Type: BNE-51MSY

Year: 2018

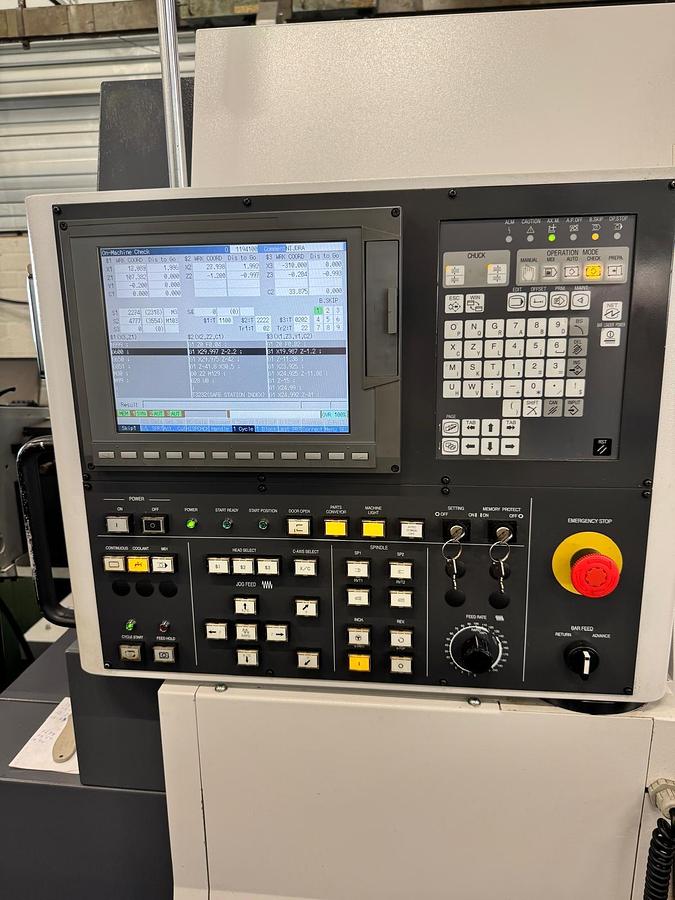

Control: MITSUBISHI

Maximum turning diameter: 165mm

Maximum turning length: 380mm

Maximum bar capacity: 51mm

Distance between spindles: 432mm

Y-axis travel: 80mm (±40mm)

X1/Z1-axis travel: 195/380mm

X2/Z2-axis travel: 195/175mm

X3/Z3-axis travel: 155/450mm

Main spindle speed: 5000rpm

Main spindle motor: 15/11kW

Main spindle chuck: 165mm (6")

Main spindle nose: A2-6

Main spindle draw tube diameter: 52mm

Sub-spindle speed: 5000rpm

Sub-spindle motor: 7.5/5.5kW

Sub-spindle chuck: 165mm (6")

Sub-spindle nose: A2-6

Sub-spindle draw tube diameter: 52mm

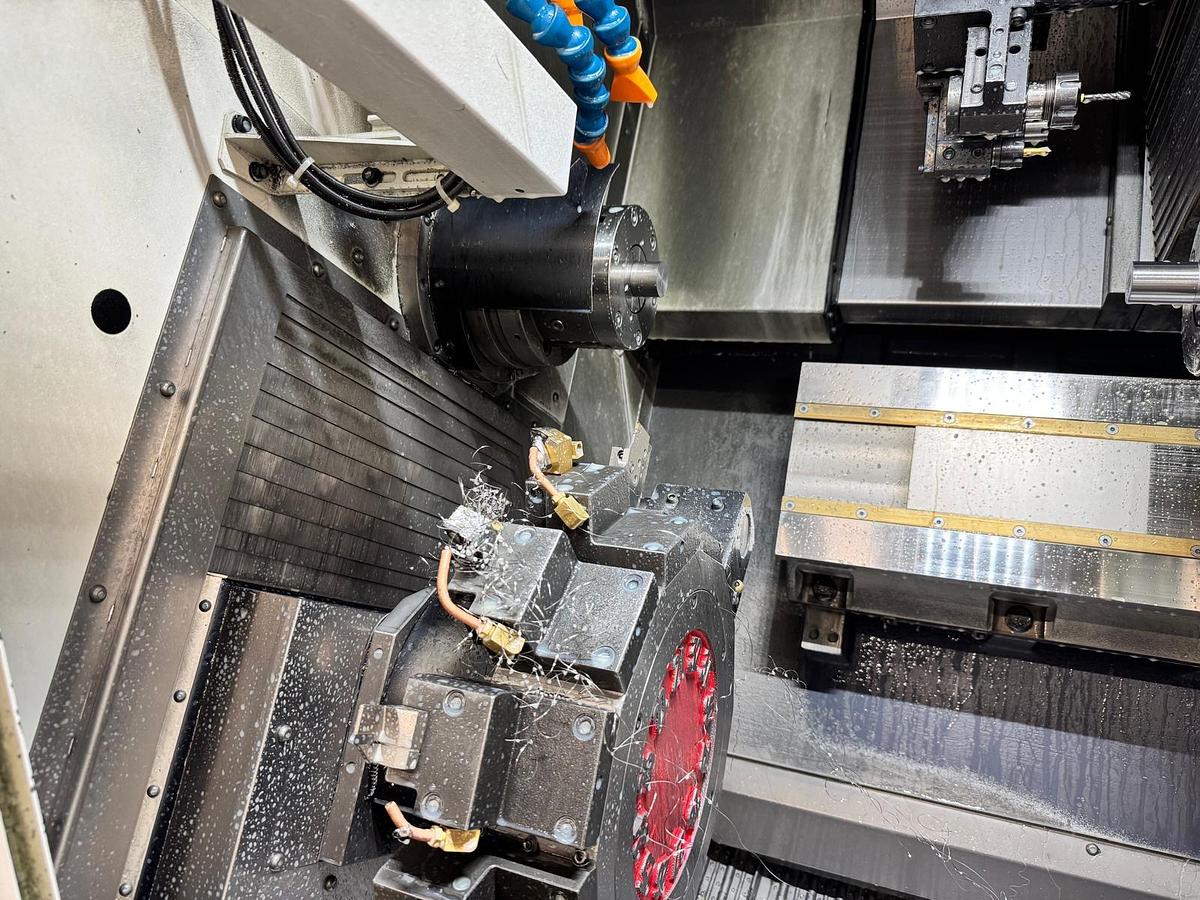

Number of turrets: 2

Tool stations: 12 per turret

Revolving tools: Up to 12 + 12

Driven tool speed: 6000rpm

Tool shank size: 20mm square

Drill shank diameter: 25mm

Machine weight: 8000kg

Please Note: The above information has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. Specific tooling must be requested before purchasing, since machines are in production at time of photos and availability can not be guaranteed. We advise you to check any vital details!
